Products » Cub Cadet » LTX 1045
Model Quick Search

$1,899.00

2010 Cub Cadet LTX 1045

LTX 1045 Sale

Now until October 15, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form

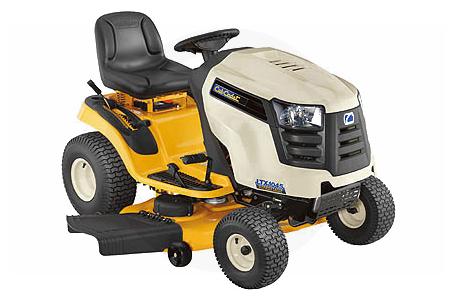

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 20 HP Kohler® Courage® single cylinder engine for longer engine life, quieter operation and better ride on your riding mower.
  • Full-pressure lubrication w/spin-on oil filter. Easy access makes routine maintenance quick and easy.
  • Hydrostatic transmission w/cruise control provides your riding mower with a durable, reliable power and a smoother ride.
  • 46 in. QuickAttach™ deck.
  • Exclusive Smart Jet™ Deck Wash System. High pressure water cleans out grass and debris build-up under the deck.
  • RevTEK™ Reverse Mowing Technology allows mowing in forward or reverse until the operator leaves the tractor seat, turns the key back to normal or turns off engine.
Specifications
  • Engine: 20 HP Kohler® Courage® single cylinder
  • Cylinders/Material: 1/cast-iron sleeve
  • Lubrication: Fully pressurized automotive-style oil pump w/spin-on oil filter
  • Drive System: Automatic w/heavy-duty hydrostatic pump with oil drain port
  • Engine to Transmission: Heavy-duty Kevlar® belt
  • Cruise Control: Standard
  • Transmission Housing: Die cast aluminum
  • Steering: Manual sector & pinion
  • Front Axle: Heavy-duty cast-iron w/dual grease fittings - 5-year limited warranty
  • Spindles: 3/4 in. with grease fittings
  • Ball Joints: 2 automotive-style
  • Rear Axle Diameter: 3/4 in. diameter with dual steel wheel drive hubs
  • Turning Radius: 12 in.
  • Chassis Type: Robotically welded steel frame assembly - 5-year limited warranty
  • Frame: Heavy-duty 9-gauge steel - 5-year limited warranty
  • Hood & Grill: Corrosion and dent resistant high-impact ABS
  • Fender & Bumper: Steel fender w/twin rear fender flares w/grab handles and glove box
  • Alternator: 15 amp. regulated
  • Battery: 12 volt heavy-duty 190 cold crank amp.
  • Charging System: Flywheel alternator
  • Headlights: Standard
  • System Monitor Package: Digital hour meter, change oil service minder, battery voltage monitor, park brake and PTO start sequence LED's
  • Safety Systems: Neutral start, operator presence, reverse safety switch, brake pedal lock, RevTEK™
  • PTO Clutch: Manual lever control
  • Deck Lift: Manual/12 position
  • Brakes: Automotive-style disc
  • Seat: High-back seat, 12-positions with 6 seat travel
  • Front Tires: 15 in. x 6 in.
  • Rear Tires: 20 in. x 8 in.
  • Forward Speed: 0-5.2 mph
  • Reverse Speed: 0-2.3 mph
  • Fuel Tank: 3.5 gal, easy fill, large opening, rustproof
  • Engine Oil: 1.6 qt.
  • Transmission Oil: 2.0 qt.
  • Wheelbase: 47.5 in.
  • Overall Length: 69 in.
  • Estimated Weight w/Deck: 510 lbs
  • Cutting Width/Blades: 46 in. heavy-duty triple blades
  • Deck Cutting Height: 1.5 in. - 4 in.
  • Mower Deck Construction: 12-gauge steel
  • Mower Drive System: Heavy-duty Kevlar® belt
  • Anti-Scalping: 4 wheels
  • Mulch Kit: Optional
  • Deck Spindles: Die cast aluminum spindle housings w/ball bearings and grease fittings for long life
  • Deck Pulleys: All steel with heavy-duty bearings
  • Deck Attach/Removal: QuickAttach™ in seconds, no tools required
  • Deck Wash: Patented Smart Jet™ high-pressure deck washing system
  • Warranty: 3-year/120-hour & 5-year/500-hour limited
Attachments
  • 42 in. Snow Thrower
  • 46 in. Dozer Blade
  • 25 Gallon Sprayer
  • Broadcast Spreader
  • 10 cu. ft. Poly Cart
  • 40 in. Tow Behind Lawn Plug Aerator
  • 40 in. Tow Behind Lawn Spike Aerator
  • 48 in. Tow Behind Poly Lawn Roller
  • 46 in. Mulch Kit
  • Wheel Weights
  • 46 in. Twin Bagger
  • Front Bumper
  • Tire Chains (20 in. x 10 in.)
  • 42 in. Lawn Sweeper
  • 40 in. Tow Behind Lawn Dethatcher

Specifications

Engine
Engine Manufacturer Kohler
Horse Power 20 hp
Engine Type Kohler® Courage® single cylinder
General
Transmission Automatic w/heavy-duty hydrostatic pump with oil drain port
Wheel Size Front: 15 in. x 6 in.; Rear: 20 in. x 8 in.
Fuel Capacity 3.5 gals.
Deck
Deck Size 46 in.
Discharge Type Side; Optional: Mulch Kit

Compare Models

 Print








Year 2010
Manufacturer Cub Cadet
Model LTX 1045
Style Riding
Deck
Deck Size 46 in.
Discharge Type Side; Optional: Mulch Kit
Engine
Engine Manufacturer Kohler
Horse Power 20 hp
Engine Type Kohler® Courage® single cylinder
Displacement
General
Transmission Automatic w/heavy-duty hydrostatic pump with oil drain port
Wheel Size Front: 15 in. x 6 in.; Rear: 20 in. x 8 in.
Fuel Capacity 3.5 gals.
